¶ Background
BillRun billing can support external sources, such CRM or ERP, for customers and subscriptions datastore instead of a local database that stores this information. The other system doesn't need provisioning customers and subscribers to the billing, but just exposing the API listed in this document (GSD, GAD and Billable).
The extenral API can support secure API with OAuth2.
¶ Subscriber Identification ("GSD" - Get Subscriber Details)
When BillRun is in “external” subscribers mode, in config:
subscribers.subscriber.type = “external” ,
subscribers.subscriber.external_url = "http://<CRM ADDRESS>/<GSD_URL>"
Each CDR line creator needs to be identified, BillRun will send an aggregated request to the CRM, with the CDRs identification data.
API Description: depending on the params sent in the queries, expects to get back an array of matching results.
HTTP Method: POST
¶ Outgoing Request
Format: JSON
Structure:
- query (JSON)- array of objects each containing the following:
- time (string, optional) - in the format Y-m-d H:i:s
- id (string) - some call-unique string to match the response items
- params (array of objects) - to match by, in the following structure:
- key (string) - the field key to query for (subscriber field name)
- operator - one of [equal, in]
- value (string / array of string) - depending on the operator, the value/s of the key to match for
- limit (integer, optional) - determines how many subscribers are expected at the most. When not set, all subscribers matching the query should be returned.
- limit (integer, optional) : defines that amount of results expected to be return further results should be cut off, if not defined all results should be returned
- time (string, optional) : global time to use when generating a query from in ‘params’ in case the time field is missing, (this field should always be populated if there's a missing time field in the params array), in the format Y-m-d H:i:s
¶ Expected Result
Format : JSON
Structure:
- Array of objects representing the results for each query in the queries array. Each object would contain relevant subscriber’s revisions (dates-dependent subscriber state, including relevant plan, services etc. during these dates), each object containing the following:, each with the following structure:
- id (string) - Objects should be keyed by their matching given id.
- from (string) - subscriber’s revision start date (Y-m-d H:i:s)
- to (string) - subscriber’s revision end date (Y-m-d H:i:s)
- aid (integer) - account id
- sid (integer) - subscriber id
- plan (string) - the name of the plan the subscriber is under in the relevant revision
- services (array of objects) - all the services the subscriber has under this revision, each in the following structure:
- name (string) - service key
- from (string) - service start date (Y-m-d H:i:s)
- to (string) - service end date (Y-m-d H:i:s)
- service_id (integer) - unique identifier for this subscription
- creation_time (string) - subscriber’s registration-to-service date (Y-m-d H:i:s)
- play (string) - subscriber "type" (mobile, fixed)
- firstname (string, optional)
- lastname (string, optional)
- address (string, optional)
- country (string, optional)
- activation_date (string) - start date of the subscriber (Y-m-d H:i:s)
- deactivation_date (string) - end date of the subscriber (Y-m-d H:i:s)
- plan_activation (string) - start date of the subscriber’s plan (Y-m-d H:i:s)
- plan_deactivation (string) - start date of the subscriber’s (Y-m-d H:i:s)
- former_plan (string) - key of the subscriber’s last plan
- If any field in the return objects contains multiple values, pass it as an array (see services above)
¶ Example Request
http://host/path_to_api?query=[{"id":"0987654321gfedcba","time":"2019-10-20 08:23:38","params":[{"key": "field1", "operator": "equal", "value": "555555"},{,"key": field2, "operator": "in", "value": ["55555", "66666", "77777"]}], {,"id":"abcdefg1234567890","time":"2019-10-20 08:23:38","params":[{"key": "field1", "operator": "equal", "value": 123123}, {"key": field2, "operator": "in", "value": ["123456", "87654532"]}],limit:1,time:"2019-10-20 08:23:38"}]&limit=2&time=2019-10-20 08:23:38
¶ Example Response
[ { “id": “0987654321gfedcba", “from": “2019-01-01 09:00:00", "to":"2019-10-01 09:00:00", "aid":132, "sid":3, "plan":"SIMPLE_PLAN", "services": [ { “name":"SIMPLE_SERVICE", "from":"2019-01-01 10:00:00", "to":"2019-09-01 10:00:00", "service_id": 1541524671067, "creation_time":"2019-09-01 10:00:00" } ], "play":"mobile", "firstname":"a", "lastname":"b", "address":"c", "country":"Denmark", "plan_activation":"2019-09-01 10:00:00", "plan_deactivation":"2019-10-01 10:00:00", "activation_date":"2019-09-01 10:00:00", "deactivation_date":"2119-09-01 10:00:00", "former_plan":"OLDER_PLAN" } ]
¶ Account Identification ("GAD" - Get Account Details)
When billrun accounts mode is “external”, in config:
subscribers.account.type = “external” ,
subscribers.account.external_url = "http://CRM ADDRESS/GAD_URL"
BillRun will make this API request in order to retrieve account data from the CRM in the following flows:
- Customer charging (Payment)
- Other configured foreign account fields
HTTP Method: POST
¶ Outgoing Request
Format: JSON
Structure:
- query (array of objects)- each containing the following:
- time (string) - in the format Y-m-d H:i:s
- id (string) - some call-unique string to match the response objects
- params (array of objects)- to match by, in the following structure:
- key (string) - the key to query for (account field name)
- operator - one of [equal, in]
- value (string / array of string) - depending on the operator, the value/s of the key to match for
- limit (optional integer) - determines how many accounts are expected at the most. When not set, all accounts matching the query should be returned.
- limit (integer, optional) : defines that amount of results expected to be return further results should be cut off, if not defined all results should be returned
- time (string, optional) : global time to use when generating a query from in ‘params’ in case the time field is missing, (this field should always be populated if there’s a missing time field in the params array), in the format Y-m-d H:i:s
¶ Expected Result
Format : JSON
Structure:
- Array of objects representing the results for each query in the queries array. Each object would contain relevant account’s revisions (dates-dependent account state, including relevant plan, services etc. during these dates), each object containing the following:
|
Account revision |
|||
|
Parameter |
Type |
Description |
Inner Structure |
| id | String | The id representing the query that produced this result | |
| aid | int | account ID |
- |
| from | string (Y-m-d H:i:s) | revision start_date |
- |
| to | string (Y-m-d H:i:s) | Revision end_date |
- |
| string |
- |
||
| invoice_shipping_method | string |
One of [email, post, website] |
- |
| invoice_detailed | boolean |
- |
|
| address | string | account address |
- |
| <custom_field> | string | every custom field that is mandatory in the system |
- |
| tenant_return_url | string |
- |
|
| creation_time | String (Y-m-d H:i:s) | account creation date |
- |
¶ Example Request
http://host/path_to_api?query=[{“params”:[{‘key’: ‘field1’, ‘operator’: ‘equal’, ‘value’: ‘555555’}, {‘key’: field2, ‘operator’: 'in', ‘value’: [‘55555’, ’66666’, ‘77777’]}], “time”:”2019-10-20 08:23:38”,”id”:”7b7a8b8a9b9a6b6a5b5a”,”limit”:”1”}]&time=2019-10-20 08:23:38&limit=1
¶ Example Response
[ { "id": "7b7a8b8a9b9a6b6a5b5a", "aid":132, "from": "2019-01-01 09:00:00", "to":"2019-10-01 09:00:00", "email":"a@gmail.com", "invoice_shipping_method":"post", "invoice_detailed":false, "address":"xxxxxxxx", "custom_field1":"123", "tenant_return_url":"http://abs.com", "payment_gateway": { "active": { "name":"xxx", "card_token":"1234", "card_expiration":"2019-01-01 09:00:00", "personal_id":"xxxxxx", "transaction_exhausted":false, "generate_token_time":"2019-01-01 09:00:00", "auth_number":"xxxxx", "four_digits":"1234" } }, "creation_time":"2019-09-01 10:00:00" } ]
¶ Get Billable Accounts ("GBA")
Description: When billrun mode is “external”, in config:
subscribers.account.type = “external” ,
subscribers.subscriber.type = "external”
subscribers.billable.url = "http[s]://[CRM_HOST]/[CRM_URL]"
Before the billing cycle is executed, it requests the CRM for all the active accounts in the CRM that should be billed. Then it uses the returned data to generate the account invoice for the billrun (The pagination sort should be by the account ID). It is recommended to return revisions from a few months back, even if none are active during the requested billing cycle. This will allow charging of deactivated subscribers in case they have same chargeable records in the requested cycle.
The system request will contain the <start_date> and <end_date> of the required cycle, pagination params i.e <page> & <size>, and an optional <account ids> array of integers which represents specific account ids that should be returned in the response.
Note that for pagination purposes, you are required to prepare results accordingly, (i.e. two responses should not have overlapping data). The system will stop sending requests once it receives empty responses, hence non-full/ empty responses should happen only when there are no more results to return.
A response should include all relevant revision data for any active subscriber/account during the given dates. The following describes the necessary data:
- Subscriber revision - Date-range dependent subscriber state. A subscriber can have multiple revisions, each describes the subscriber’s state for the date interval.
|
Subscriber Revision |
|||
|
Parameter |
Type |
Description |
Inner Structure |
| type | string | The revision type value should always be ‘subscriber’ for subscriber revisions |
“subscriber” |
| sid | int | subscriber ID |
- |
| aid | int | account ID |
- |
| from | string (Y-m-d H:i:s) | Revision start_date |
- |
| to | string (Y-m-d H:i:s) | Revision end_date |
- |
| plan | string | Subscriber’s plan key |
- |
| services | array | all subscriber’s services for this revision |
- name (string) - from (Y-m-d H:i:s) - to (Y-m-d H:i:s) - service_id (int) - creation_time (Y-m-d H:i:s) - quantity (int optional) |
| play | string | Subscriber type |
- |
| firstname | string | subscriber first name |
- |
| lastname | string | subscriber last name |
- |
| address | string | subscriber address |
- |
| <custom_field> | string | Every custom field that is mandatory in the system |
- |
| former_plan | string | the last plan the subscriber had, if any |
- |
| discounts | array | all subscriber-level discounts for this revision. If there are multiple revisions for the subscriber, only the discounts from the last revision of the cycle are taken into account. |
see discounts API |
| plan_activation | String (Y-m-d H:i:s) | subscriber’s plan activation start date |
- |
| plan_deactivation | String (Y-m-d H:i:s) | subscriber’s plan activation end date |
- |
| activation_date | String (Y-m-d H:i:s) | when did the subscriber start to exist |
- |
| deactivation_date | String (Y-m-d H:i:s) | when will the subscriber no longer exist |
- |
| creation_time | String (Y-m-d H:i:s) | subscriber’s creation date |
- |
| overrides - | array of objects, optional | an array of overrides expression objects used to overrides plans and services values such as price or rates associations | |
- Account revision - Date-range dependent account state. An account can have multiple revisions, each describes the account’s state for the date interval. It basically the same as ‘get account details’ API request revision structure and info.
|
Account revision |
|||
|
Parameter |
Type |
Description |
Inner Structure |
| type | string | The revision type value should always be account for account revisions |
“account” |
| aid | int | account ID |
- |
| from | string (Y-m-d H:i:s) | revision start_date |
- |
| to | string (Y-m-d H:i:s) | Revision end_date |
- |
| string |
- |
||
| invoice_shipping_method | string |
One of [email, mail, website] |
- |
| invoice_detailed | boolean |
- |
|
| address | string | account address |
- |
| <custom_field> | string | every custom field that is mandatory in the system |
- |
| creation_time | String (Y-m-d H:i:s) | account creation date |
- |
| activation_date | String (Y-m-d H:i:s) | Account activation date |
- |
| deactivation_date | String (Y-m-d H:i:s) | Account deactivation date |
- |
| services | Array | all customer’s services for this revision |
- name (string) - from (Y-m-d H:i:s) - to (Y-m-d H:i:s) - service_id (int) - creation_time (Y-m-d H:i:s) - quantity (int optional) |
| overrides - | array of objects, optional | an array of overrides expression objects used to overrides plans and services values such as price or rates associations | |
In addition, each “billable” request should also return extra “options” parameters to the billing cycle, if exists. For example you can send under “options” -> “merge_credit_installments” array of account IDs and their subscribers IDs - to merge their future credit installments, e.g in order to merge the credit installment of subscriber id (SID) 6, of account ID 10, and also, SIDs 8,9 of account ID 11, the API response will be:
{
status: [0,1],
data: [
{<account revision>}, ---> first object is account revision
{<subscriber revision>},
…,
{<subscriber revision>}]
options:[
“merge_credit_installments” : [
10 : [6],
11 : [8,9]
]
]
}
¶ Outgoing Request
HTTP Method: POST
Outgoing Request parameters:
|
Parameter |
Type |
Description |
| start_date | string | Cycle start date |
| end_date | string | Cycle end date |
| page | int | the page offset ( offset * size ) of the accounts & subscribers revisions to return |
| size | int | amount of the expected accounts in results for the request |
| aids | string | Optional. if passed, the request is only for these comma-separated account ids. |
¶ Expected Result
Format : JSON
Structure:
{
status: [0,1],
data: [
{<account revision>}, ---> first object is account revision
{<subscriber revision>},
…,
{<subscriber revision>}]
options:[ ]
}
| parameter | type | description | structure |
| status | boolean | success / failure | |
| data | array of objects | revisions of all the subscribers & accounts that were active during the billing cycle |
- status :
- 1 = successful
- 0 = failed
- data: array of objects describing the revisions of all the subscribers & accounts that were active between <start_date> and <end_date>, each in the following account/subscriber revision as described above
¶ Example Request
http://host/path_to_billable_api?start_date=2019-10-01&end_date=2019-10-31&page=0&size=500&aids=134,135,240
¶ Example Response
{ "status" : 1, "data" : [ { "aid": 314155, "sid": 161803, "plan": "BIG_PLAN", "services": [ ], "firstname": "example", "lastname": "revision", "address": "some place in some city", "phone_number": "0512345678", "ndcsn": "512667508", "imsi": [ "425086000401337", "425019301401337" ], "type": "subscriber", "plan_activation": "2019-11-21T11:17:37", "to": "2168-09-16T09:07:50", "deactivation_date": "2168-09-16T09:07:50", "from": "2019-11-21T11:17:38", "creation_time": "2019-09-16T08:07:50", "activation_date": "2019-09-16T08:07:50", "plan_deactivation": "2168-09-16T09:07:50", "overrides" : [ { "type" : "service", "key" : "SERVICE1", "value" : { "price" : [ { "price" : 0, "from" : 0, "to" : "UNLIMITED" } ] } } ] } ], "options":[] }
¶ Overrides object structure
You can use overrides to override pricing and other element of the plan or service on a specific subscriber or account.
The override object is as follows:
| Override object | ||
|---|---|---|
| type | string | The entity type to override (plan or service) |
| key | string | The entity key to override (plan key or service key) |
| value | object | JSON object of the fields and their override values. For instance, the plan / service price can be overridden for a limited/unlimited number of billing cycles, using the “from” / “to” fields (See example above) |
| condition | object | a standard condition object to filter the entities |
| id | string | optional - If the override type is ‘service’ then this field will represent the service_id in the services array to override. |
¶ Discounts
A discount object can be added using the same structure of the discounts API.
Another option available only for subscribers is to add a discount with the same key as a discount in the general discounts screen. With that method the linked general discount will automatically apply to the subscriber even if the discount's conditions do not normally apply to the subscriber.
It is also possible to add other discount fields that will override the general discount fields for that subscriber such as subject (discount amount) and other fields in the discount.

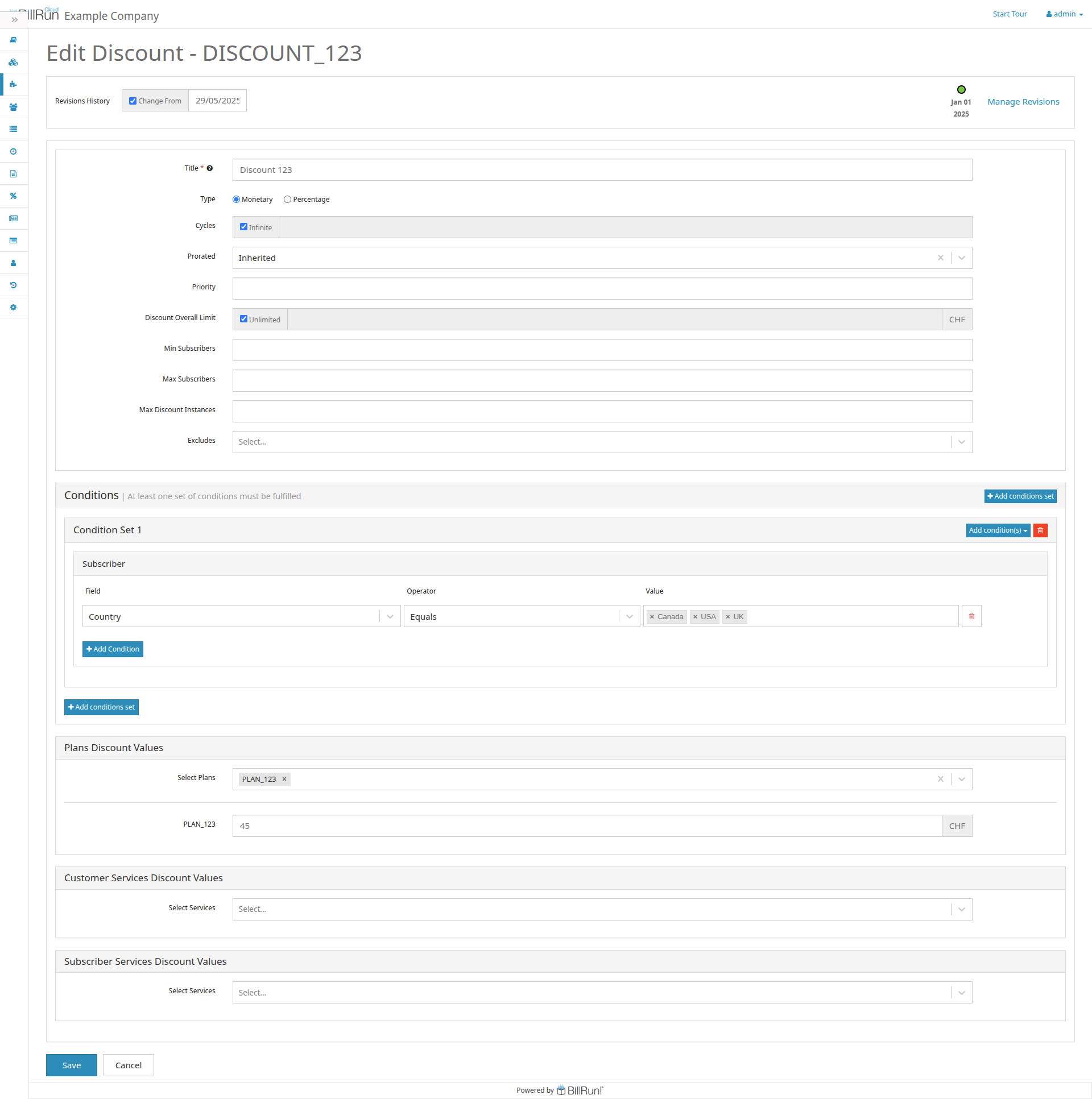

For example the if the following general discount only applies to subscriber from specific countries:
Adding the following object to the GBA of a subscriber will apply the discount on that subscriber regardless of the country of the subscriber:
"discounts" : [
{
"key" : DISCOUNT_123,
}
]Furthermore, adding the following object to the GBA of a subscriber will apply the discount on that subscriber regardless of the country of the subscriber and also change the amount of the discount to 90:
"discounts" : [
{
"key" : "DISCOUNT_123",
"subject" : {
"plan" : {
"PLAN_123" : {
"value" : 90
}
}
}
}
]¶ Notifications / events
Description: When a defined threshold is met the system will send notification with details.
¶ Outgoing Request
Structure as follows:
- event_code: The user-defined event code of the triggered event.
- event_type: balance/subscriber/customer
- creation_time: time that the notification was created
- start_notify_time: time that the notification was sent to the 3rd party.
- stamp: unique identifier of the notification record.
- based_on: one of the next values:
- usage: threshold is usage based.
- monetary: threshold is monetary based.
- before: the usage/cost before taking into account another cdr usage.
- after: the usage/cost after taking into account another cdr usage.
- extra_params:
- aid: customer identification number associated with the notification.
- sid: subscriber id.
- row:
- usagev: usage of the cdr that triggered the notification.
- urt: timestamp of the cdr that triggered the notification.
- conditions: array of objects where each object is a condition need to met for the notification to be sent. Condition object contains the following fields:
- path - path to the field that the condition is on.
- unit - units of measure.
- usaget - usage type.
- type - notification type.
- value - the condition threshold.
- group_total: appears only if there’s condition on a group, displays the group included usage.
¶ Example Request
HTTP Method: GET
http://host?event_code=TOTAL_COST&event_type=balance&before=0&after=5&based_on=monetary&
stamp=90d9b683d0f3912a41166e5aa8ac27bc&start_notify_time=1513604493&creation_time=1513603493&
extra_params={“aid":2, "sid":7, “row":{"usagev":60,"urt":1513604493}}&
conditions=[{“path":"balance.cost","unit":"","usaget":"","Type":"reached_constant_recurring"},"value":10]
¶ Expected Response
Structure:
- success: true or false
¶ Example Response
Format:JSON
{“success”: true}
